LIGHT RAIL DESCRIPTION:
GB Light Rail is the weight less than or equal to 30kg per meter. It can be divided into 6kg rail, 8kg rail, 9kg rail, 12kg rail, 15kg rail, 18kg rail, 22kg rail, 24kg rail, 30kg rail.
LIGHT RAIL SPECIFICATIONS
Standard | GB11264-89 | ||||||

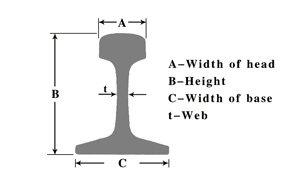

Model | Dimension | Weight(kg/m) | Material | Length(m/pc) | |||
A(mm) | B(mm) | C(mm) | t(mm) | ||||
GB 6KG | 25.4 | 50.8 | 50.8 | 4.76 | 5.98 | Q235 | 6-12 |
GB 9KG | 32.1 | 63.5 | 63.5 | 5.9 | 8.94 | Q235 | 6-12 |
GB12KG | 38.1 | 69.85 | 69.85 | 7.54 | 12.2 | Q235/55Q | 6-12 |
GB15KG | 42.86 | 79.37 | 79.37 | 8.33 | 15.2 | Q235/55Q | 6-12 |
GB22KG | 50.8 | 93.66 | 93.66 | 10.72 | 22.3 | Q235/55Q | 6-12 |
GB30KG | 60.33 | 107.95 | 107.95 | 12.3 | 30.1 | Q235/55Q | 6-12 |
Standard | YB222-63 | ||||||
Model | Dimension | Weight(kg/m) | Material | Length(m/pc) | |||
A(mm) | B(mm) | C(mm) | t(mm) | ||||
YB 8KG | 25 | 65 | 54 | 7 | 8.42 | Q235 | 6-12 |
YB 18KG | 40 | 90 | 80 | 10 | 18.06 | Q235/55Q | 6-12 |
YB 24KG | 51 | 107 | 92 | 10.9 | 24.46 | Q235/55Q | 6-12 |
LIGHT RAIL APPLICATION:
The light rail is mainly used for the laying of temporary transporation lines and light locomotive lines for forest areas, mining areas, factories and construction sites.
Email: zxzhihu@gmail.com
Whatsapp: +86 19937123680
ADVANTAGES:
Large Stock
Full-time Service
Fast Delivery Time
Professional Team
Competitive Price and High Quality
FAQ:
Q: Are you trading company or manufacturer?
A: We are manufacturer.
Q: How long is your delivery time?
A: Generally, within 7-30 days after deposit received.
Q: Can we visit you factory?
A: Warmly welcome! Once we have your schedule, we will arrange the professional sales team to fellow up your case.
Q: Do you provide samples?
A: Available upon request.
